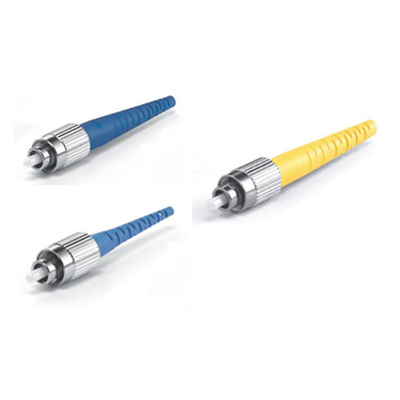

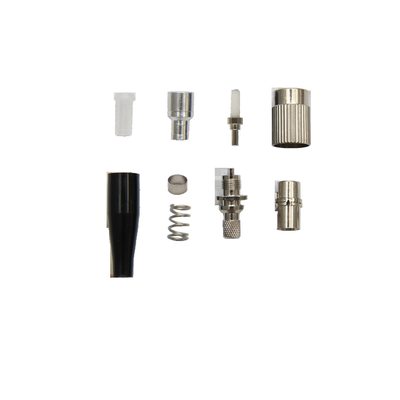

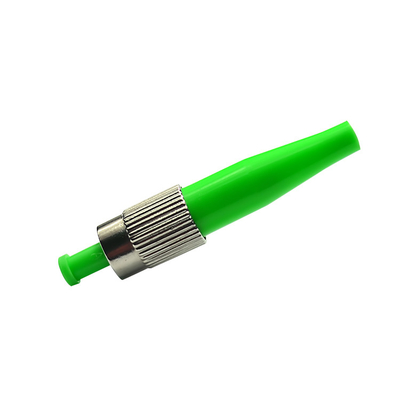

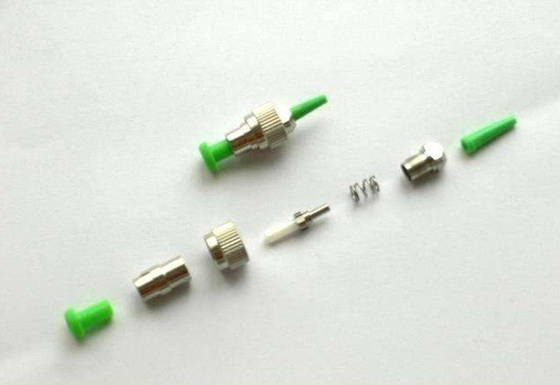

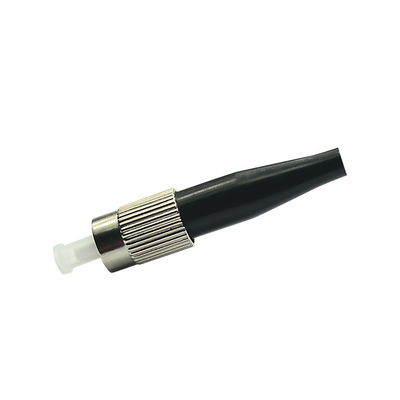

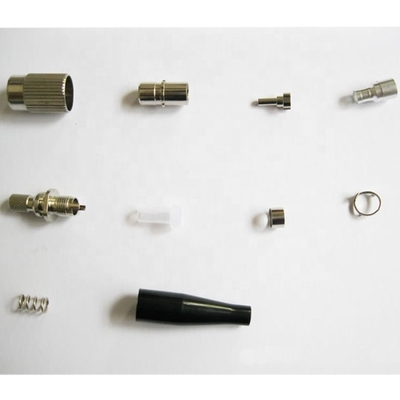

FC PC SM MM 3.0mm 2.0mm 0.9mm Fiber Patch Cord Connectors

Büyük resim : FC PC SM MM 3.0mm 2.0mm 0.9mm Fiber Patch Cord Connectors

Ürün ayrıntıları:

Place of Origin:	Shenzhen , China
Marka adı:	CY COM
Sertifika:	ISO9001:2015 , ISO14001:2015, RoHS
Model Number:	FC

Ödeme & teslimat koşulları:

Minimum Order Quantity:	100pcs
Packaging Details:	PE bag
Delivery Time:	3-7 dasys
Payment Terms:	Western Union, T/T
Supply Ability:	10000pcs/day

İletişim

Detaylı ürün tanımı

Ferrule End-face:	UPC, APC(8°）	Ferrule brand:	CCTC
Boot diameter:	0.9/2.0/3.0mm	Fiber type:	SM / MM
Color:	Black / Red / Green / Customized	Structure:	Simplex / Duplex
Boot type:	Smooth/ Hollow	Material:	PEI / FBT
Vurgulamak:	0.9mm Fiber Patch Cord Connectors , SM 3.0MM fiber optic connectors , 2.0MM FC PC connectors

FC PC SM MM 3.0mm 2.0mm 0.9mm Fiber Patch Cord Connectors

CY COM is a proessional manufacturer of fiber optical connector products with good quality low price.

SC.ST,LC, MTRJ and hybird typer/PC/APC fiber optical connector are available.

Features:

--- Low insertion loss and back reflection loss

--- Ferrule end surface pre-domed

--- Precision anti-rotation key and corrosion resistant body

--- UL-rated plastic housing

--- Telcordia style boots

--- Free-floating ceramic ferrule

Ordering information:

Ferrule End-face: PC, UPC, APC
Core Type: Single mode(SM: 9/125um), Multimode(MM: 50/125um or 62.5/125um)
Core quantity: Simplex(SX), Duplex(DX)
Boot diameter: 0.9mm, 2.0mm, 3.0mm
Color: Blue,Yellow,Green

Applications:

Gigabit Ethernet;

Active device termination;

Telecommunication networks;

Video; Multimedia;

Industrial;

Military;

Premise installations;

Specifcation:

Items	Single mode					Multimode
	PC	UPC		APC		62.5/125	50/125	50/125 10G
Insertion Loss	<0.2dB					<0.3dB
Return Loss	≥45dB		≥50dB		≥60dB	≥35dB
Durability	<0.1dB typical change, 500 matings

FC PC SM MM 3.0mm 2.0mm 0.9mm Fiber Patch Cord Connectors 1
