| Model Numarası: | CMC-GS60 | Uygulama: | İletişim |
|---|---|---|---|
| Tip: | Sm ve Mm | Bağlantı yapısı: | FC, Sc, LC, St |
| İzin verilen yanal basınç: | > 1000 (n/100mm) | İzin verilen gerilme mukavemeti: | 1000N <10000n |
| marka: | Cy, OEM | Mesafe: | 224/ 550m,20/40/60/80/100km |
| Dalgaboyu: | 850nm,1310nm,1550nm | Şartname: | CE, SGS, RoHS |
| Menşei: | SHENZHEN ÇİN | ||
| Vurgulamak: | single mode fiber media converter,1000Base-LX media converter 60Km,10/100/1000Base-Tx to fiber converter |
||

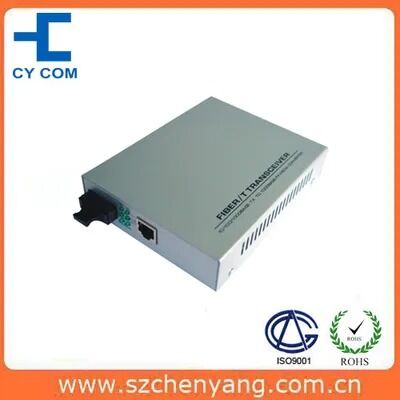

10/100/1000M Gigabit Optical Fiber Media Converter
CY Series Gigabit Fiber Media Converter can convert Optical-Electric Ethernet signals between 10/100/1000M UTP interface (TX) and 1000M optical fiber interface (FX). The traditional 10/100/1000M gigabit Ethernet can be extended to the distance of 100km through optical fiber link.
The performance and quality of the products are excellent because of adopting latest Gigabit IC from USA and Taiwan. 6 Group LED indicated lights could fully monitor the working conditions of converters. It is easy for users to observe and diagnose the failure of converters.
CY Series Gigabit Converters could be used alone; But Converter Card should be inserted to 16 slots RACK supplied by CY Crop. Which is suitable for the use of Network Centre.
| Operating standards | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit |
|---|---|
| Wavelength | 850nm/1310nm/1550nm |
| MAC address table | 4K |
| Data Buffer | 256K |
| Connector | UTP: RJ-45, 10/100/1000Mbps; Fiber: SC, 1000Mbps |
| Cable |
UTP cable: Cat 5e or Cat 6 (the max distance up to 100m) Fiber: Multimode: 50/125, 62.5/125μ M (the max distance up to 550/224m) Singlemode: 8.3/125, 8.7/125, 9/125μ M (the max distance up to 120km) |
| Flow control |
Full Duplex: IEEE802.3X Half Duplex: Back pressure |
| Conversion mode | Medium conversion |
| Delay | <10μ S |
| Bit error rate | <1/1000000000 |
| MTBF | 80,000 hours |
| LED Indicators |
POWER (power), FX LINK (fiber link action), TP LINK1000 (twisted pair connection 1000M), TP LINK100 (twisted pair connection 100M), TP ACT (twisted pair packet forwarding action), FDX (Ethernet interface mode indicator ON, Full duplex/ OFF, Half duplex) |
| Power Requirement |
Input: AC 170 ~ 240V or DC -36V-72V Output: DC 5V 2A Power consumption: 5W |
| Environmental Specifications |
Ambient temperature: 0 ~ +50°C Storage temperature: -20 ~ +70°C Humidity: 5% ~ 90% |
| Dimensions |
Internal power: 30×110×140mm External power: 26×70×93mm |
