| Product name: | 96 144 Ports Fiber Optic Patch Panel | Type: | Full Load |
|---|---|---|---|
| Specification: | Standard 19" Rack | Application: | Telecommunication |
| Material: | Plastic parts ABS, box cold rolled sheet | Application range: | Building, office and wireless base station |
| Vurgulamak: | 144 Core ODF Optical Distribution Frame,144 Core ODF,144 Core Optical Distribution Frame |
||

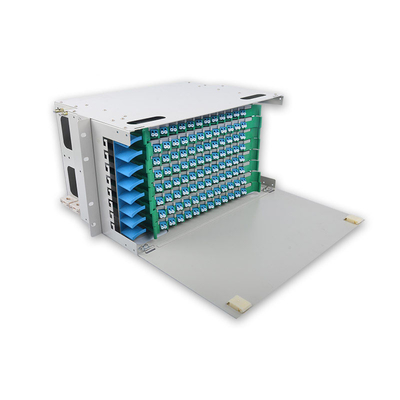

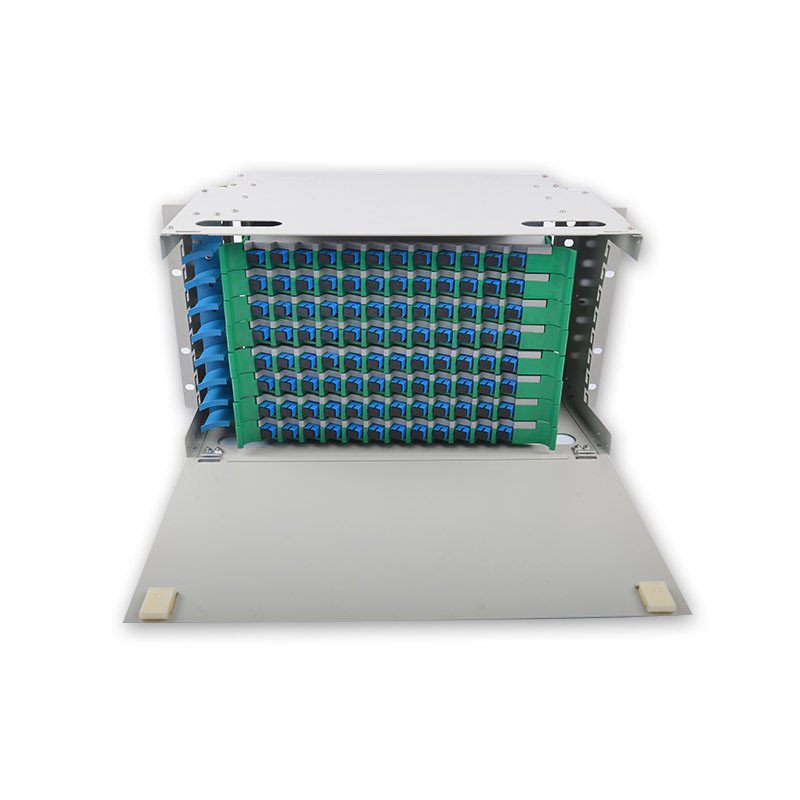

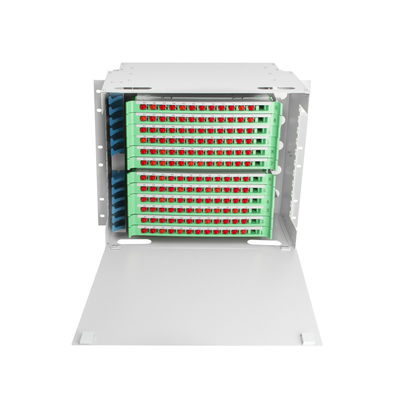

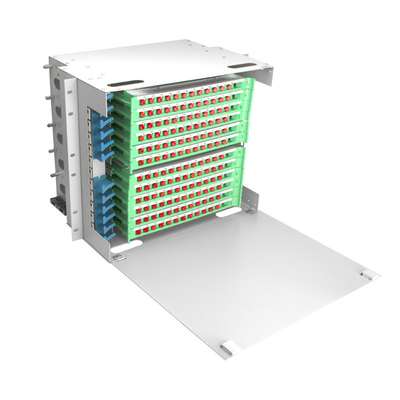

Odf 96 144 Core FTTH Rack Mount Full Load 96 144 Port Fiber Optic Terminal Box ODF
Description:
An optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fibre splicing, fibre termination, fibre optic adapters & connectors and cable connections together in a single unit. It can also work as a protective device to protect fibre optic connections from damage.
Features:
1) Standard size, light weight and reasonable structure

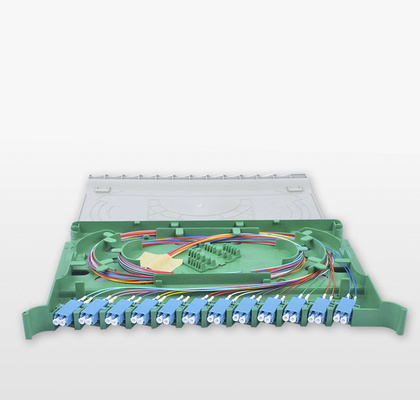

2) Splice tray inside changeable
3) Can be used in 19'', 23'' standard distribution frame
4) Suitable for ribbon and single fiber
5) Various panel plate to fit different adapter interface
6) Front mark on the plate is easy for identification and operation
7) 24C, 36C, 48C, 72C 96C optional, with or without fiber optic pigtails and adapters
8) Easy for management and operation
Application:
1) Telecommunications subscriber loop
2) Fiber to the home (FTTH)
3) LAN/WAN
4) CATV
| We support fiber capacity | 12/24/48/72/96/144 cores |
| Fiber Port | FC, SC, ST and LC |
| Number of ODF disks | 12 for 1, 24 for 2, 48 for 4, 72 for 6, 96 for 8, and 144 for 12 |
| Working temperature | -10 °C ~ +40 °C |
| Storage temperature | -25 ° C ~ +55 ° C |
| Relative humidity | ≤ 85% (+30 ° C) |
| Atmospheric pressure | 70Kpa~106Kpa |
| Nominal operating wavelength | 850nm, 1310nm, 1550nm |
| Insertion loss | ≤ 0.5dB |
| Return loss | PC ≥ 40dB, UPC ≥ 50dB, APC ≥ 60dB |
| Electrical strength | ≥3KV(DC)/1min without breakdown |
| Insulation resistance | ≥1000MΩ/500V (DC) |
| Life | ≥1000 times |
| Application range | Small and medium-sized wiring system for fiber to the cell, fiber to the building, remote module office and wireless base station |
