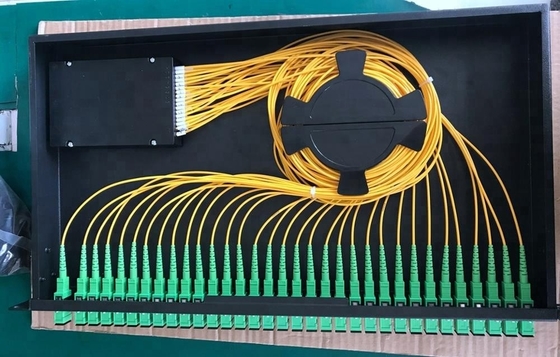

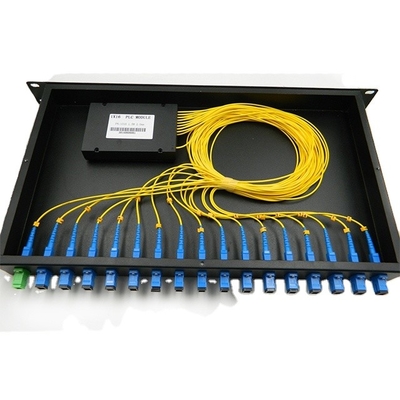

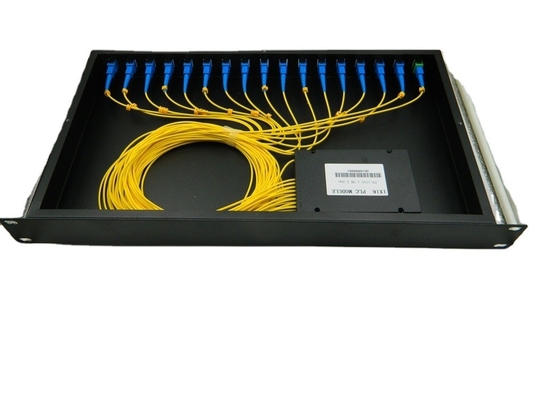

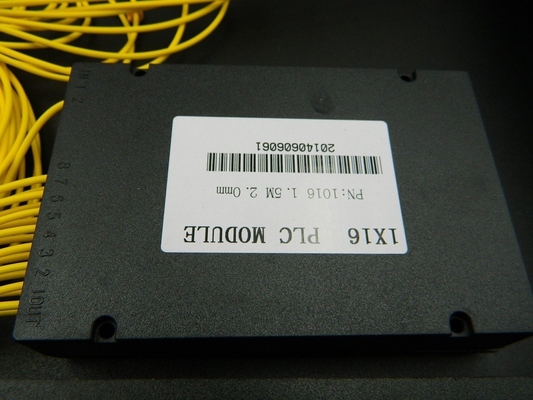

Aluminum 19 Inch Rack Mounted Type 1x32 PLC Splitter

Büyük resim : Aluminum 19 Inch Rack Mounted Type 1x32 PLC Splitter

Ürün ayrıntıları:

Place of Origin:	Shenzhen China
Marka adı:	CY COM
Sertifika:	ISO9001:2015, SGS, ROSH
Model Number:	19 inch Rack Mounted plc splitter box

Ödeme & teslimat koşulları:

Minimum Order Quantity:	20pcs
Fiyat:	negotiable
Packaging Details:	plastic box or Individual gift carton box
Delivery Time:	8-9 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	20K/ Month

İletişim

Detaylı ürün tanımı

Model Type::	19 inch plc splitter box	Package Type::	Rack Mount
Material::	Aluminum	Fiber Connector::	SC/LC/FC/ST
Operating Temperate::	-40~85°C	Function::	Distribution Fiber System (FTTH)
Vurgulamak:	1x32 PLC Splitter , Rack Mounted Type PLC Splitter , 1x32 Fiber PLC Splitter

Aluminum 19 Inch Rack Mounted Type 1x32 PLC Splitter

Aluminum 19 inch Rack Mounted Type PLC Splitter 1x16 1x32 Fiber Optical Splitter Optic Box

Quick Detail:

Fiber type: G652D, G657A1, G657A2
Cable jacket: PVC, LSZH, OFNR, OFNP
Cable length: 1M, 1.5m…customized
Package: ABS, Steel tube
Connector: SC, LC, ST, FC, MU, E2000
Ferrule end-face: PC, UPC, APC

Description:

We can provide whole series of 1xN and 2xN splitter products that are tailored for specific applications.

Features:

Excellent directivity
Good channel-to-channel uniformity
High cost-effectiveness
High environmental and mechanical stability

Applications:

Fiber optical communication system
Fiber optical sensors
CATV System
LAN System
WAN System

Specification:

Table 1 – 1×N PLC Splitter

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260~1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40~85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40~85
Storage Temperature (℃)	-40~85
Package	Steel Tube or ABS

Table 2 – 2×N PLC Splitter

Parameters	2×2	2×4	2×8	2×16	2×32	2×64
Operating Wavelength (nm)	1260~1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)	4.0	7.6	11.0	14.4	17.5	21.0
Loss Uniformity (dB)	0.6	1.0	1.2	1.5	1.8	2.2
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.4	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.4	0.5	0.5	0.5	0.5
Temperature Stability(-40~85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40~85
Storage Temperature (℃)	-40~85
Package	Steel Tube or ABS

Notes:

Specified without connectors.
Add an additional 0.15dB loss per connector.

Aluminum 19 Inch Rack Mounted Type 1x32 PLC Splitter 0

Aluminum 19 Inch Rack Mounted Type 1x32 PLC Splitter 3
