OADM 2 Fiber In 2 Fiber Out 1470nm WDM CWDM DWDM

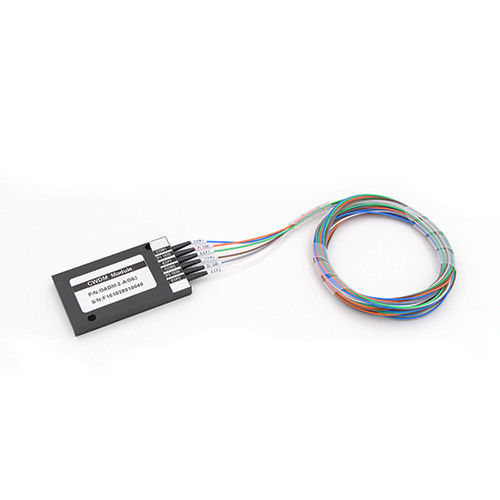

Büyük resim : OADM 2 Fiber In 2 Fiber Out 1470nm WDM CWDM DWDM

Ürün ayrıntıları:

Place of Origin:	Shenzhen China
Marka adı:	CY COM
Sertifika:	ISO RoSH SGS
Model Number:	CWDM OADM

Ödeme & teslimat koşulları:

Minimum Order Quantity:	10pcs
Fiyat:	negotiable
Packaging Details:	Individual gift carton box
Delivery Time:	8-9 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000 Piece/Pieces per Month

İletişim

Detaylı ürün tanımı

Model No.:	CWDM OADM	Wavelength:	1270~1610nm
Connector:	LC SC UPC APC (OEM)	Case:	ABS Box
Sertifika:	CE FCC RoHS ISO9001	Compliance:	Telcordia GR-1209-CORE/GR-1221-CORE/RoHS
Vurgulamak:	1470nm WDM CWDM DWDM , CWDM OADM , CWDM DWDM ABS Box Module

OADM 2 Fiber In 2 Fiber Out 1470nm WDM CWDM DWDM

Good quality OADM 2 fiber in/2 fiber out Add/Drop 1470nm, Compact box CWDM OADM ABS Box Module

Description

CWDM is using optical multiplexer to different wavelengths of light to reuse the signals to single fiber transmission, the receiving end of the link, with the aid of photolysis multiplexer to mixed signal in the optical fiber signal is decomposed into different wavelengths, connected to the corresponding receiving equipment.

Applications

CWDM System

PON Networks

CATV Links

Features&Advantage:

• Multiplexing of up to 1 channel on fiber pair

• Low insertion loss, splice/pigtailed ABS module low profile modular design


• Secure physical separation between data channels

• Transparent operation - protocol and topology independent

• Passive, no electric power required

• Duplex LC/UPC, easily support duplex patch cables between transceiver and passive unit

• Wide Operating Wavelength: 1270nm ~ 1610nm

• Operating Temperature: 0℃ to 70℃

Specification

Grade Parameter	Grade "Premium"
Operating Wavelength (nm)	1310 & 1550
Bandwidth (nm)	±10
Insertion Loss (dB)	≤ 0.15 (0.10 typ.)
Isolation (dB)	≥ 20
Polarization Dependent Loss (dB)	≤ 0.1
Thermal Stability (dB/°C)	≤ 0.002
Operating Temperature(°C)	-40 to +85
Directivity (dB)	≥ 60

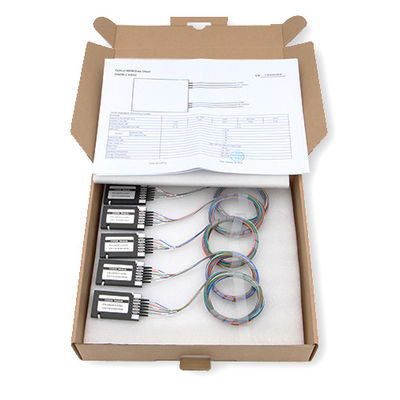

OADM 2 Fiber In 2 Fiber Out 1470nm WDM CWDM DWDM 0

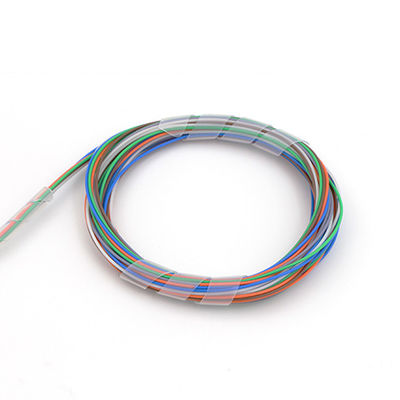

OADM 2 Fiber In 2 Fiber Out 1470nm WDM CWDM DWDM 2
