Ürün ayrıntıları:
|
| Product name: | Attenuator | Fiber Mode: | Single mode, Multimode |
|---|---|---|---|
| Attenuation Accurancy: | 1-9dB ±0.5dB, 10-30dB ±10% | Attenuation range: | 0-30dB |
| Return loss: | PC≥45 dB; UPC≥50 dB ;APC ≥60 dB | Repeatability: | 1000 times |
| Operating Wavelength (nm): | 1260~1620(SM) | Operating temperature: | -40-80°C |
| Color: | Black | Connector: | SC |
| Vurgulamak: | SC Fiber Optic Attenuator,5dB Fiber Optical Attenuator,4dB Fiber Optical Attenuator |
||
1dB 2dB 3dB 4dB 5dB Fixed SC Fiber Optic Attenuator
1dB 2dB 3dB 4dB 5dB SC Attenuator Male to Female Fixed Fiber Optic Attenuator
Product Descriptio
1. Introduction:
* High power 1W continuous operation tested over 1000 hours
* Precise attenuation
* Return loss UPC >50 dB APC >60 dB
* Low ripple broadband design for operation at both 1310 and 1550 nm
* Attenuation range for SC, FC, and LC types 1 to 13 dB in 1 dB increments, 15 dB, and 20 dB
2. Fiber Optical Attenuator Features:
1. Metal ion doped fiber
2. High-power light source durability
3. Wavelength independence
4. Attenuation levels ranging from 1dB to 30dB, with standard and premium tolerances, plus custom configurations
5. 1310nm, 1550nm, 1250-1625nm and 1350/1550nm dual wave lengths
6. FC, SC, ST, LC ,optional
7. Plastic or metal housing material
3. Technical parameters:
|
PARAMETER |
UNIT |
FIXED ATTENUATORS(FC/SC/ST/LC) |
VARIABLE ATTENUATORS (FC/SC) |
|
|
Operation wavelength |
nm |
1310,1550 |
1200-1600 |
|
|
Attenuation Value |
dB |
±0.5dB (<10dB) ±1.0dB (>10dB) |
0-30 |
|
|
Max. Optical Input Power |
MW |
500 |
500 |
|
|
Max. PDI |
dB |
≤0.1 |
≤0.1 |
|
|
Return Loss |
dB |
PC |
≥45 |
|
|
UPC |
≥55 |
|
||
|
APC |
≥60 |
|||
|
Operating Temperature |
C |
-30~+75 |
-30~+75 |
|
|
Storage Temperature |
C |
-40~+85 |
-40~+85 |
|
Application:
* Fiber optic systems
* CATV and telecommunication systems
* Receiver padding for optical receiver protection
* Optical power equalization
* Increasing dynamic range for apparatus

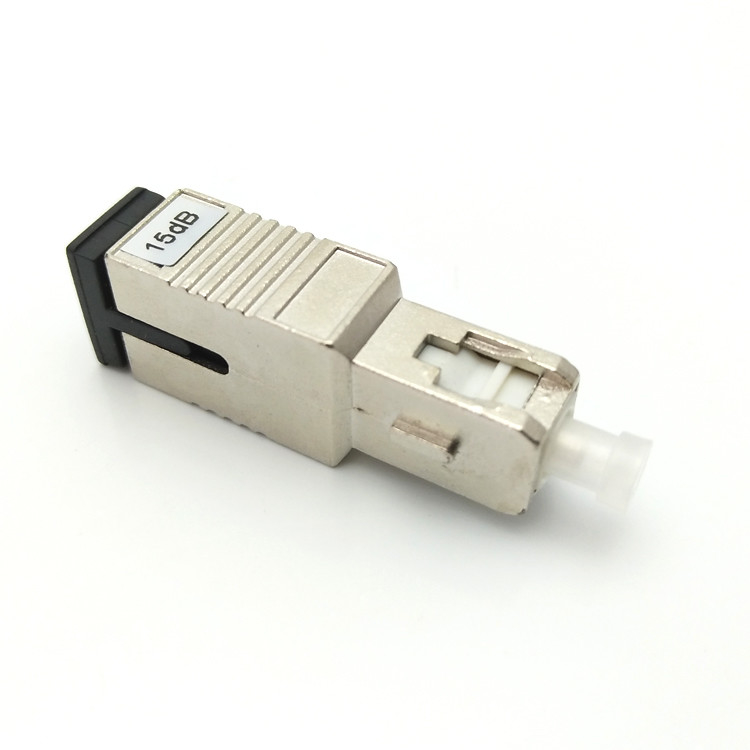

Product picture
Factory picture
Shenzhen CY COM product co.,ltd is a manufacturer of fiber optical patch cord and cable, established in 2008.
Now the factory area is 3000 square meters.
Our main business is fiber optical cabling, fiber outdoor connection,MPO/MTP product and fiber optical cable.our products were widely used at telecom room,LTE base staion,wimax,data center and fiber optical patch cord plant.
Continuous quality improvement and quickly respond to market demands ,CY COM have exported to USA,England,Italy,Germany,Fance,Spain,Brazil, Argentina,Thailand,Maylasia,Singapore,Australia, Algeria etc.
