| Item: | ST-LC hybrid adapter | FC Side: | Female |
|---|---|---|---|
| SC Side: | Female | Shape: | Rectangle |
| FC Material: | Zinc or Copper alloy | SC Material: | Zinc or Copper alloy |
| Fiber type: | Singlemode / Mutilmode | Type: | Simplex |
| Vurgulamak: | ST LC Rectangle Simplex optic coupler,ST LC Split Simplex optic coupler,ST LC Simplex APC Optical Coupler |
||

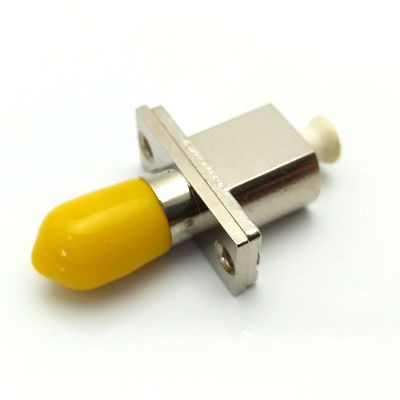

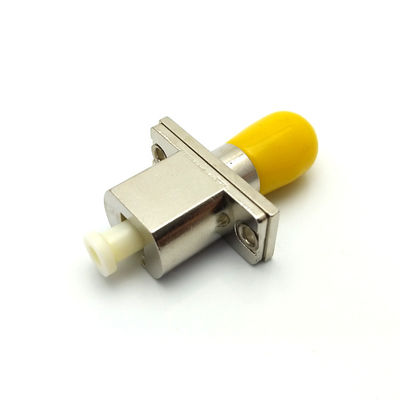

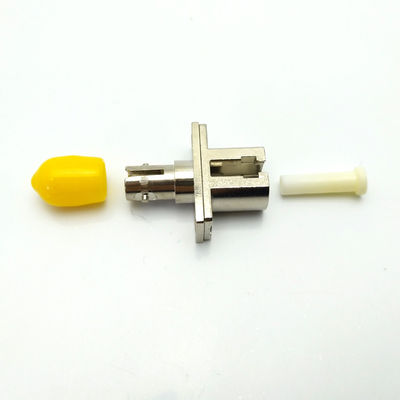

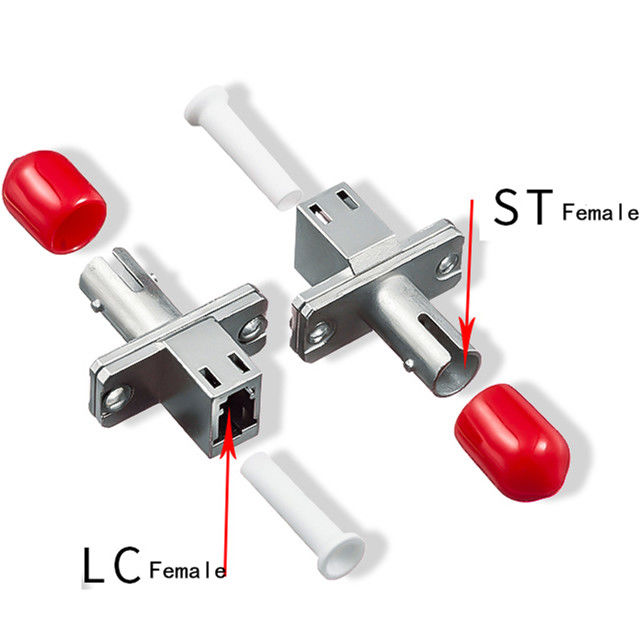

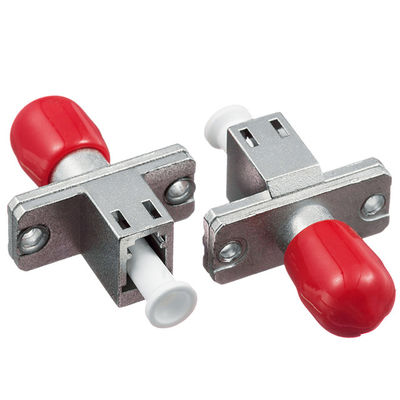

ST Female to LC Female Hybrid ST-LC Simplex Fiber optic Adapter , Zinc or Copper alloy Metal material Coupler
Description:
The ST to LC Hybrid Simplex Fiber Optic Adapter is a special style of fiber optic adapter that supports precision connection of different types of fiber optic connectors. It is specially designed to incorporate the Small Form Factor ST into LC configured environment. The compact design enables network operators to reduce cost via space-savings, and by eliminating hybrid cable assemblies.
Features:
Female to Female fiber connector types
All metal construction for long life
Interchangeable for a wide range of products
Used for Multimode or Single mode connectors
Application:
Fiber optic transmission system
CATV networks
LAN
Testing/measurement instruments
Fiber distribution frame, mounts in fiber optic wall mount and rack mount cabinets
Specification:
| Product Name | ST to LC Hybrid Simplex Fiber Optic Adapter |
| Available type | Available in Multimode and singlemode |
| Ferrule End-face | APC or UPC for option |
| Fiber Counts | Simplex |
| Insertion Loss: | ≤ 0.20dB |
| Durability: | ≤0.20dB typical change,1000 matings |
| Operating Temperature: | - 40°C to + 85°C |
| Connector A | LC/UPC Female |
| Connector B | ST/UPC Female |
| Warranty | Limited life |
| Product Keywords | Simplex Fiber Optic Dongle Adapters,Hybrid Fiber Optic Dongle Adapters,LC to ST Fiber Optic Dongle Adapters |
Drawing and Pictures:
