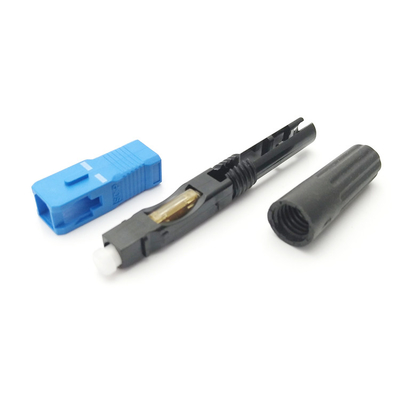

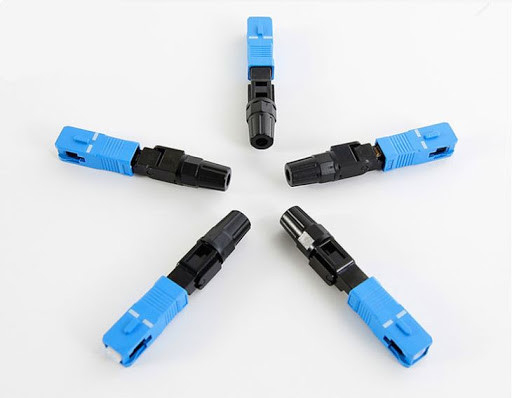

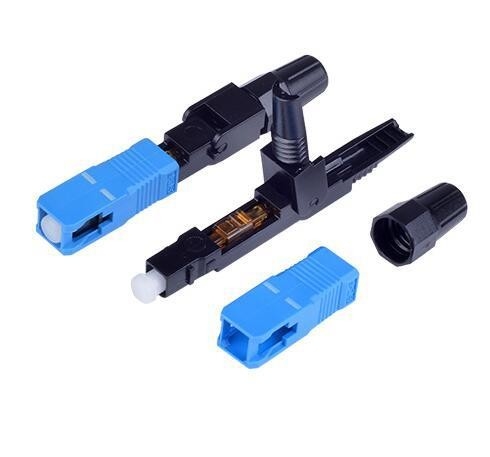

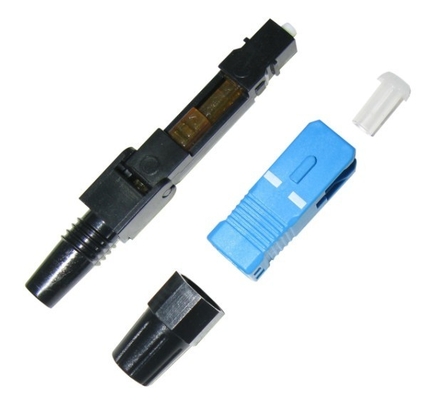

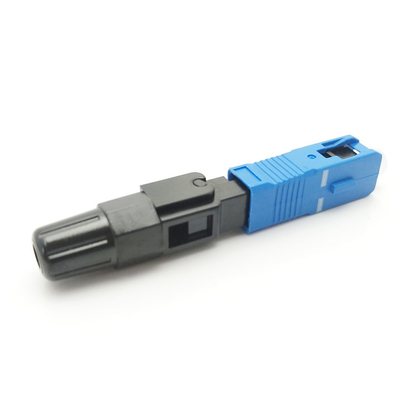

Pre Embedded Ftth 3.0mm Sc Upc Fast Connectors Assembly

Büyük resim : Pre Embedded Ftth 3.0mm Sc Upc Fast Connectors Assembly

Ürün ayrıntıları:

Place of Origin:	Shenzhen China
Marka adı:	CY COM
Sertifika:	ISO ROSH

Ödeme & teslimat koşulları:

Minimum Order Quantity:	50pcs
Fiyat:	Western Union, T/T
Packaging Details:	PE package bag
Delivery Time:	3-7 days
Payment Terms:	T/T, Western Union
Supply Ability:	100K / Week

İletişim

Detaylı ürün tanımı

Product name:	Fast connectors	Color:	Blue
Connector:	SC UPC	Length:	55MM
Insertion cycle:	more than 1000 times	Application:	Telecom networks FTTX CATV
Vurgulamak:	Sc Upc Fast Connectors Assembly , 3.0mm Fast Connectors Assembly , 3.0mm Ftth Fast Connectors Assembly

Pre Embedded Ftth 3.0mm Sc Upc Fast Connectors Assembly

3.0mm waterproof pre-embedded ftth sc upc quickly assembly fiber optic connectors splice

Description:
1). An fiber optic quick connector terminates the end of an optical fiber, and enables quicker connection and disconnection than
splicing.
2). The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light
due to reflection or misalignment of the fibers.

Feature:
1). Low insertion loss
2). High return loss (low amounts of reflection at the interface)
3). Ease of installation
4). Low cost
5). Reliability
6). Low environmental sensitivity
7). Ease of use

Optical Characteristics

Category	Specification
Aoolicable for	Drop cable.Indoor cable
Fiber mode	Single mode or Multi mode
Operation time	S	About 50(no fiber cut)
Insertion Loss	dB	≤0.5
Insertion Loss Typical value	dB	0.3
Return Loss	dB	≥50
Fastening strength of naked fiber	N	≥5
Tensile strength	N	≥50
Reusable	Time	≥10 times
Operating Temperature	℃	-40~+85
On-line tensile strength(20N)	dB	ΔIL≤0.3
Mechanical durability(500 times)	dB	ΔIL≤0.3
Drop-off test(drop-off height4m,once per direction,totally 3 times)	dB	ΔIL≤0.3

Application:
1). CATV
2). Active device termination
3). Telecommunication networks
4). Metro
5). Local Area Networks (LANs)
6). Data processing networks
7). Test equipment
8). Premise installation
9). Wide Area Networks(WANs)
