| Port qty: | 12 Fiber Patch Panel | Port type: | SC / LC / FC /ST |
|---|---|---|---|
| Color: | Black / White /Gray | Adapter type: | Simplex / Duplex |
| Splice Tray: | 12 core /24 core | Material: | Metal |
| Application: | FTTH System | ||
| Vurgulamak: | LC FC Fiber Optics Accessories,LGX 12 Ports Fiber Optics Accessories,LGX 12 Ports Fiber Patch Panel |
||

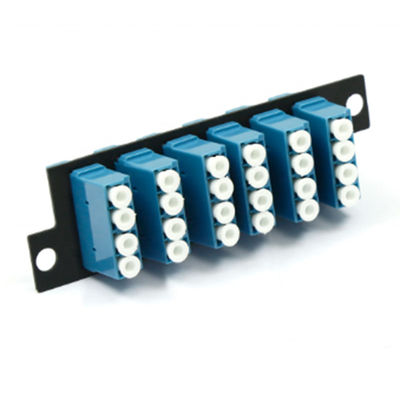

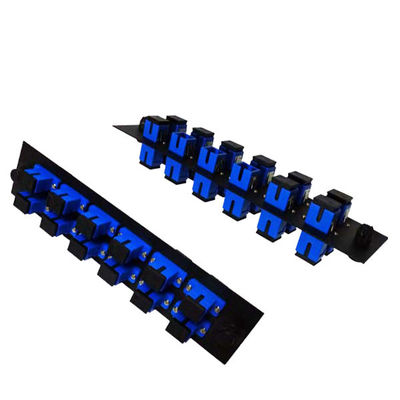

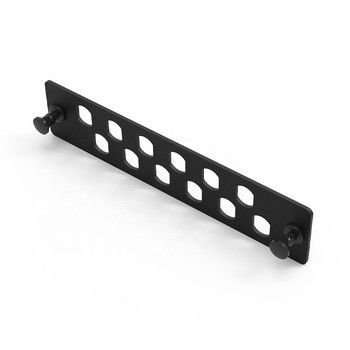

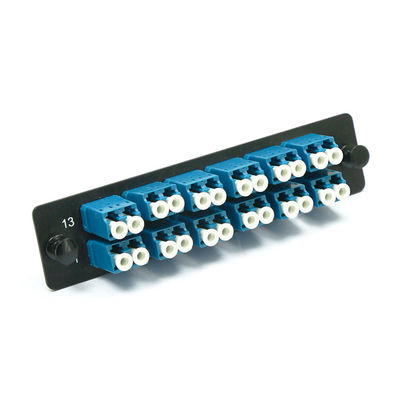

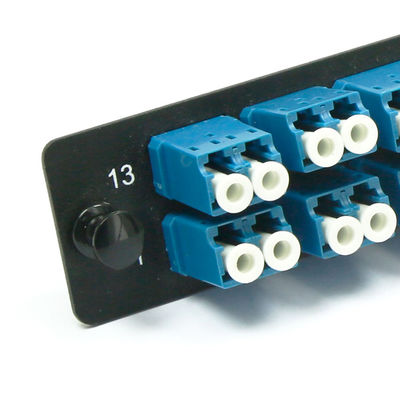

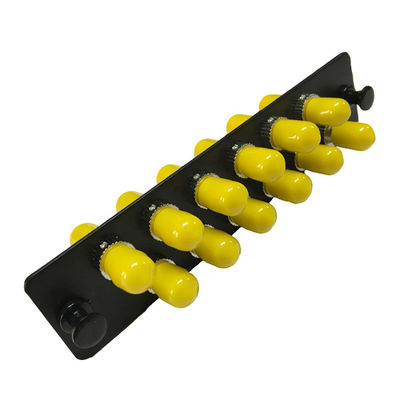

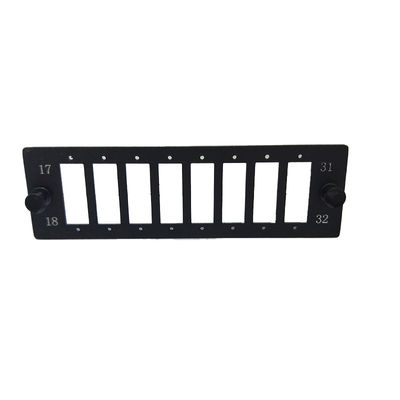

LGX 12 Ports Metal SC ST LC FC Fiber Optics Accessories
General Description
The panels are available with a variety of industry-standard adapter types. In most applications, the Closet Connector. Housing Panels are designed for applications where specified labeling and connector identification are required. This is accomplished by the use of colored icons with different symbols molded into the icon.
* 12 Port (Core) Plate with 12 SC Simplex adapters or 12 LC Duplex adapters
Main Features
* Plug &Play solution for Data Center Cabling
* 16-gauge cold rolled steel used,strong enough for on site operation
* LC FC SC ST FC MTRJ MPO/MTP adapter types available
* Interchangeable for a wide range of products
* Easy to install with push pull pins

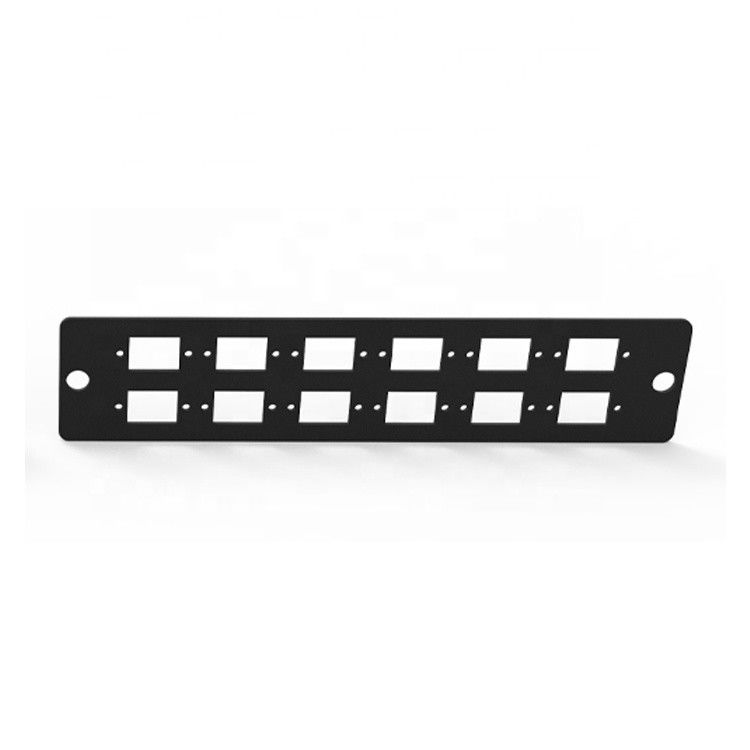

* Empty and full loaded adapter plate available.
Applications:
Specifcation:
1. Connector attenuation comply with “Grade B” according to IEC 61753 and IEC 61300-3-34(0.12dB mean,<0.25dB Max for >97% of samples,Return Loss >55dB)
2. All products factoy tested
3, Geometrical Characteristics comply with IEC 61755-3-1
4, All materials comply with IEC and ROHS
Product Show:
