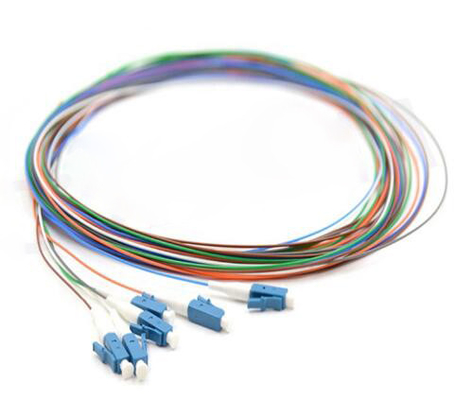

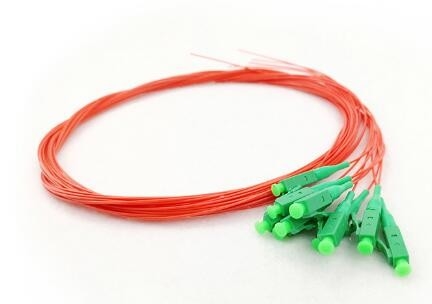

RoHS Sc Lc Fc Singlemode Multimode Fiber Optical Pigtails

Büyük resim : RoHS Sc Lc Fc Singlemode Multimode Fiber Optical Pigtails

Ürün ayrıntıları:

Place of Origin:	Shenzhen China
Marka adı:	CY COM
Sertifika:	ISO9001:2015 , ISO14001:2015, RoHS,SGS
Model Number:	SC LC FC

Ödeme & teslimat koşulları:

Minimum Order Quantity:	10PCS
Fiyat:	negotiable
Packaging Details:	PE bag or plastic box and Carton box
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30000pcs per day

İletişim

Detaylı ürün tanımı

Sertifika:	RoHS,ISO9001	Cable color:	Colors
Connector:	SC,FC,LC	Fiber Count::	4/6/8/12 Fibers
Application:	FTTH FTTB FTTX Network,cabling system	Cable diameter:	0.9/2.0/3.0mm
Vurgulamak:	Multimode Fiber Optical Pigtails , Singlemode Fiber Optical Pigtails , RoHS Sc Lc Fc Pigtails

RoHS Sc Lc Fc Singlemode Multimode Fiber Optical Pigtails

sc lc fc singlemode multimode fiber optical pigtails Customized cable color

Description:

Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment. Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, Data processing networks, LAN/WAN network, and more.

Features :

Complying with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005,standard.
Low insertion loss, high return loss

Good in repeatability and exchangeability

High dense connection, easy for operation

Application:

Telecommunication

Computer networks

CATV networks Active device termination

Instrumentation

Parameters

Parameter	LC,SC,ST,FC
	SM		MM
	UPC	APC	UPC
Operating Wavelength(nm)	1310/1550		850/1300
Insertion Loss(dB)	≤0.20	≤0.20	≤0.20
Return Loss(dB)	≥55	≥65	≥35
Repeatability Loss(dB)	≤0.1
Interchangeability Loss(dB)	≤0.20
Repeat Piug-pull Times	≥1000
Tensil Strength(N)	≥100
Durability Loss(dB)	≤0.20
Operating Temperature(℃)	-40℃~ +75℃
Storage Temperature(℃)	-40℃~85℃

RoHS Sc Lc Fc Singlemode Multimode Fiber Optical Pigtails 0
