FTTH FTTB 12 Cores SC UPC 0.9mm Optical Pigtail

Büyük resim : FTTH FTTB 12 Cores SC UPC 0.9mm Optical Pigtail

Ürün ayrıntıları:

Place of Origin:	Shenzhen China
Marka adı:	CY COM
Sertifika:	ISO9001:2015 , ISO14001:2015, RoHS,SGS
Model Number:	SC/UPC

Ödeme & teslimat koşulları:

Minimum Order Quantity:	10PCS
Fiyat:	0.2USD-0.3USD
Packaging Details:	PE bag or plastic box and Carton box
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30000pcs per day

İletişim

Detaylı ürün tanımı

Cable color:	12 Color	Fiber type:	G652D/G657A1/G657A2 etc.
Connector:	SC	Ferrule End-face:	UPC
Cable diameter:	0.9mm/2.0mm/3.0mm	Return loss:	>60dB
Application:	FTTH FTTB FTTX Network,CATV,cabling system,network	Cable length:	can be customized
Vurgulamak:	0.9mm Optical Pigtail , SC UPC Optical Pigtail , FTTH FTTB Optical Pigtail

FTTH FTTB 12 Cores SC UPC 0.9mm Optical Pigtail

12 cores Pigtail SC/UPC,12colors,0.9mm cable,singlemode for splicing in Patch Panel

Description:

Fiber optic pigtail are suited for equipment jumper cord, cross connects, and work area connections. All patch cables are manufactured using riser grade cable and are factory tested to make sure performance to meet Telcordia standards.

Features:
1. SC, LC, FC, MU, ST, MT-RJ, E2000 connector available;
2. Superior qualified standard PC, APC, UPC, SPC polishing;
3. φ0.9mm, φ2.0mm, φ3.0mm cable optional;
4. Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
5. Available in fiber bunch, ribbon fan-out, pigtail available;
6. Simplex and duplex connector available;
7. Low IL and High RL;
8. Good exchange ability and good durability;
8. Customized specifications are welcomed

Application:

Telecommunication

Computer networks

CATV networks Active device termination

Instrumentation

Specification:

Item	Single Mode	Multi Mode
Fiber Diameter	9/125um	62.5/125um 50/125um
Insertion Loss	PC＜0.3dB, APC＜0.2dB	PC＜0.3dB
Return Loss	PC＞45dB, APC＞60dB	PC＞25dB
Insert- pull test	(1000 times) ＜0.3dB
Interchange	＜0.2dB
Operation Temperature	-40℃~+80℃
Anti-tensile force	15kgf

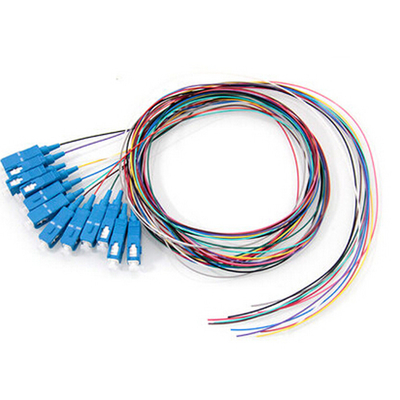

FTTH FTTB 12 Cores SC UPC 0.9mm Optical Pigtail 0

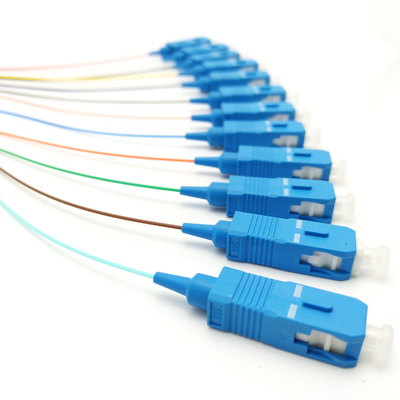

FTTH FTTB 12 Cores SC UPC 0.9mm Optical Pigtail 2

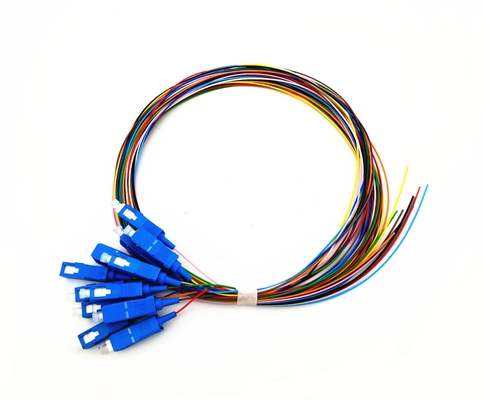

FTTH FTTB 12 Cores SC UPC 0.9mm Optical Pigtail 3
