Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
| Length: | 1m or customized | Sertifika: | RoHS,ISO9001 |
|---|---|---|---|

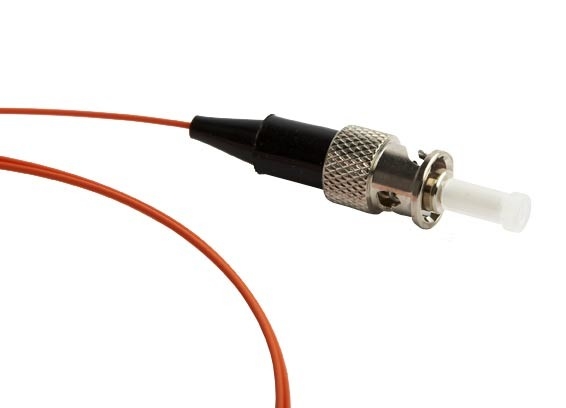

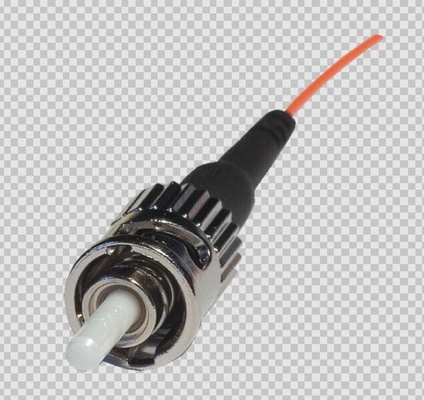

| Cable color: | white,yellow,blue or customer request | Connector: | ST |
| Cable diameter: | 0.9mm/2.0mm/3.0mm | Jacket material: | OFNP,PVC.LSZH |
| Vurgulamak: | Simplex optical fiber pigtail,3.0mm optical fiber pigtail,2.0mm optical fiber pigtail |
||
| Item | Parameter | Reference | |
| Single mode | Mutilmode | ||
| Insertion loss | Typical value≤0.15dB;Maximum≤0.30 | Typical value≤0.15dB;Maximum≤0.30 | IEC 61300-3-34 |
| Return loss | ≥ 50dB(UPC) | ≥ 30dB(UPC) | IEC 61300-3-6 |
Order Information:
1. Connector type: SC, LC, ST, FC, E2000, MTRJ, MU, DIN, D4
2. Fiber Type: SM(9/125um), OM1(62.5/125um), OM2(50/125um), OM3(50/125um), OM4(50/125um)
3. Cable count: Simplex or Duplex, bundle pigtail, ribbon pigtail
4. Diameter of cable: 3.0mm(2.8mm), 2.0mm(1.8mm), 0.9mm
5. Cable length: 2Meter, 5Meter, 10Meter, customized length
6. Cable color: Yellow for SM, Orange for OM1 & OM2, Aqua for OM3, Violet for OM4, customized color
7. Outer jacket:PVC Riser cable, PVC Plenum cable, LSZH cable
